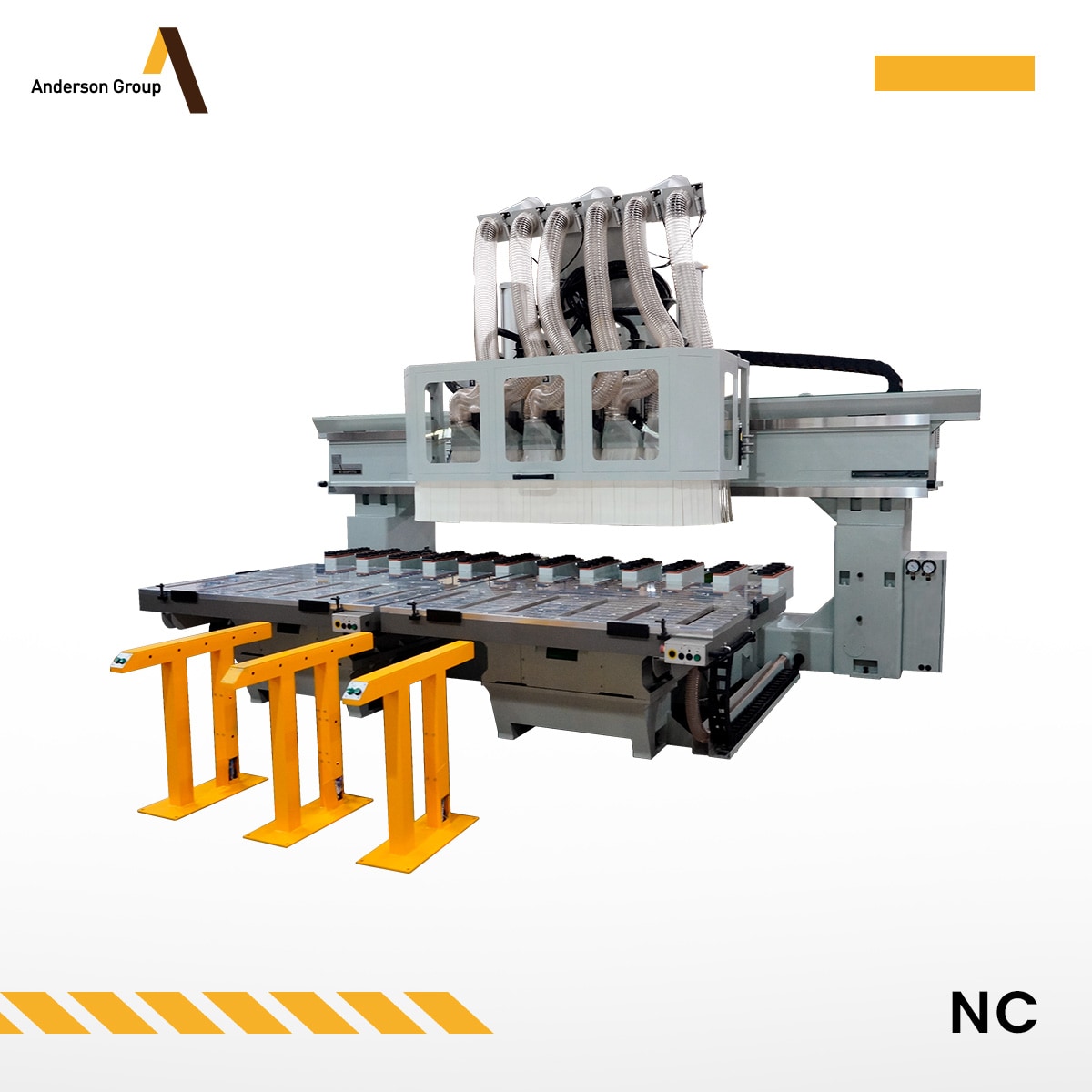

Customized 4 Axis Table Moving CNC Machine Manufacturer presents the “Non-Catalogue” Series, a full customized CNC router for unique processing needs. This CNC gantry machine supports up to six working heads with single or twin tables and extended CNC dimensions. Its full heat-treated body ensures strong rigidity and heavy CNC load capacity. The robust square guide drive system offers excellent cutting, milling, and carving. Multiple head options and customizable worktables suit for cabinetry, woodworking, furniture, solid wood, plastic, aluminum, non-ferrous and advance processing. This full customized 4 Axis Table Moving CNC router delivers precise, reliable performance for specialized applications. Contact us to enhance your manufacturing efficiency.
Certificate:
| Model | NC-3030 TC3 | NC-1816PT TC6 |
| Worktable size | 3,000 x 3,000 mm | 1,800 x 1,450 mm |
| Worktable Qty | 1 | 2 |
| Suction Zones | 3(1,000 x 3,000) | n/a |
| Worktable Top | Phenolic Board | 30 mm Aluminum Board |
| Work Spindle | 10 HP Air-cooled (SK-30) x3 | 10 HP Air-cooled (SK-30) x6 |
| Drill Block | n/a | n/a |
| Tool Changer | 8-tool ride-along carousel | 4-tool Stationary Rack x 12 |
| Tool Measurement | Fixed | Fixed |
| NC Controller | FANUC 0i-MF | FANUC 0i-MF |
| Drive System | Rack & Pinion Linear Guides Ball Screw | Ball Screw |
| Vacuum Pumps | n/a | BECKER 9 HP VTLF x2 |
| Safety Device | n/a | n/a |
| Floor Area | 6,700 x 5,500 x 3,500 mm | 6,000 x 5,000 x 2,500 mm |
Custom Series delivers a full customized CNC router designed by a leading 4 axis CNC machine manufacturer to meet the most unique and specific processing requirements. This gantry machine supports up to six working heads and offers single or twin table configurations with extended gantry and body dimensions, making it ideal for applications beyond standard machines. Built with a full heat-treated machine body, it ensures superior structural rigidity and can handle heavy gantry loads. The robust square guide drive system delivers excellent cutting, milling, and carving performance. Customizable worktable types, lengths, and layouts provide flexibility for various industries. This full customized cnc router is perfect for cabinetry, interior woodworking, furniture manufacturing, solid wood, plastic, aluminum, and composite processing.
